Fiber optic distribution box

Description

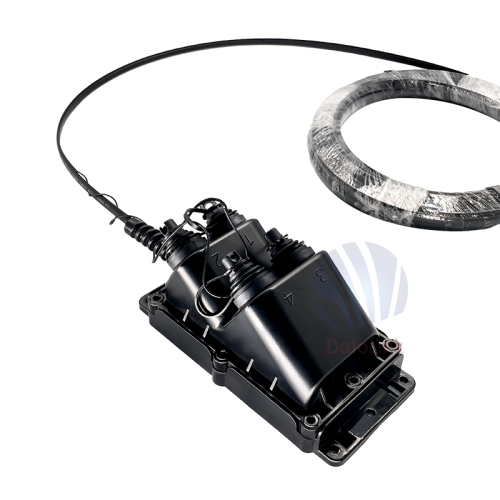

The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.

The MST consists of a two-piece plastic housing equipped with multiple optical ports.An attached optical cable assembly is connected internally to the optical ports. The MST may be ordered with four, six, eight, or twelve fiber ports . The four and eight port versions of the MST may also be ordered with internal 1×4 and 1×8 splitters so that a single optical fiber input can feed all the optical ports.



Specification

Module	WT-FTTx Enclosure -104C WT-FTTx Enclosure -106C WT-FTTx Enclosure -108C WT-FTTx Enclosure -112C
Port	4, 6, 8, 12
Product Type	Access Terminal
IP Rate	IP68
Components Compliant	RoHs
Operating Temperature	-40 to +85℃
Adapter	OptiTap SC, OptiTap LC Duplex, OptiTap MPO
Entrance	Cable gland or OptiTap adapter
Feed Cable	1, 2, 4, 6, 8 cores for options
Feed Cable Length	Customized
Stub Type	Stub Tail
Mounting Method	Hand-hole, Pedestal, Pole, Strand, Aerial
Flammability	UL94-V0
Color	Black



Size

Item	Dimension
4Port	111.4*210.8*87.8mm
6Port	112*267.5*89mm
8Port	112.5*337.4*92.5mm
12Port	137.9*364.7*110.2mm

Features

• Each box can be fully assembled to reduce the need for opening and opening the field in the
• Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable
• Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the
• Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant
• Factory terminated IP68 rated, high quality, high performance
• Flexible choice of ports: 2, 4, 6, 8 terminals are
• Kind of mounting bracket allowing for a wide range of mount
