FAU-256

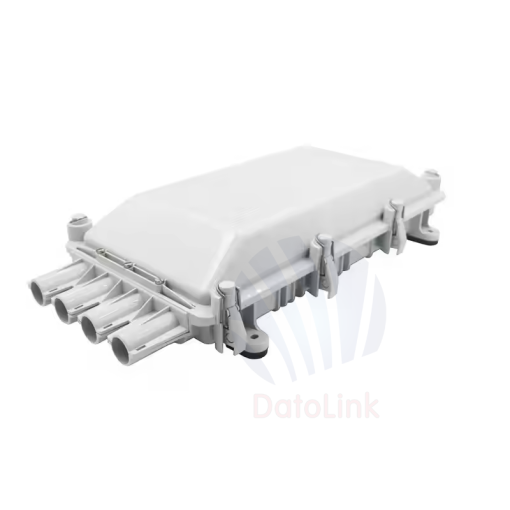

The 256FO Splice closure box is a universal access junction box that allows the continuity and segregation of large capacity optical cables used in the deployment of optical power and transport networks.

The design of the box allows the mechanical continuity of the tensile elements of the cables and protects the fibers, the unions and the optical devices facilitating the organization of the splices and the storage of the fiber excess.

The box is airtight and resistant to outdoor conditions so it can be installed both outside and inside buildings in log houses, manholes, walls or cable galleries.



Use	FTTH
Place of Origin	China
Material	PC+ABS
Use	FTTH FTTB FTTX Network
Mounting Method	Wall
Ports	256
Application	Indoor/Outdoor
Splice tray	8pcs, each tray 32core
Ingress protection	IP65
Working Temperature	-25°C – 70°C (5 to 95% relative humidity)



Description
EK0702-256C is an optic splice box for FTTH application witha capacity of 256 subscribers.The design of the box allows the mechanical continuity of the cable pulling elements and protects the fibers,the junctions and optical devices facilitating the organization of splices and fiber surplus storage.



Features

• Water-proof design with lP-65 protection level for outdoor.
• Integrated with 8 x splice trays.
• Fiber bend radius control more than 40mm.
• 4 ports for cable entrance with maximum diameter 22mm.
• Each splice tray accommodates 32 xsleeves.
• The closing cover is completely assembled and removed without the need for special tools thanks to the clip-type seal
• The boxes can be opened,closed and manipulated without interrupting the circuits in operation.lt allows joining and segregating cables without having to cut all the fibers as well as the prper storage of the tubesand/or leftover fibers of the cables.
• The boxes can be opened,closed and manipulated without interrupting the circuits in operation.lt allows joining and segregating cables without having to cut all the fibers as well as the prper storage of the tubesand/or leftover fibers of the cables.
