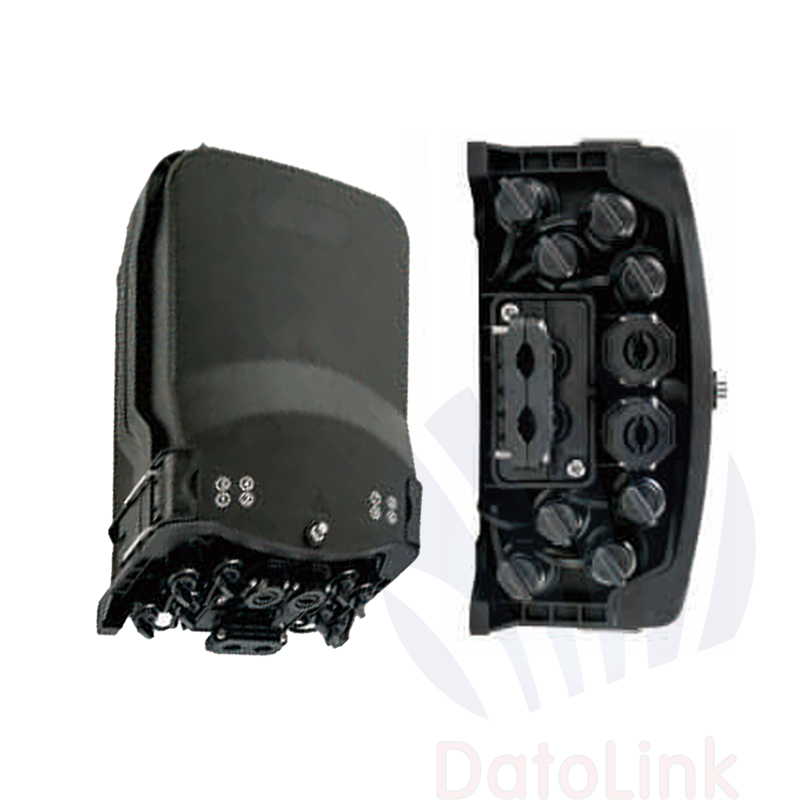

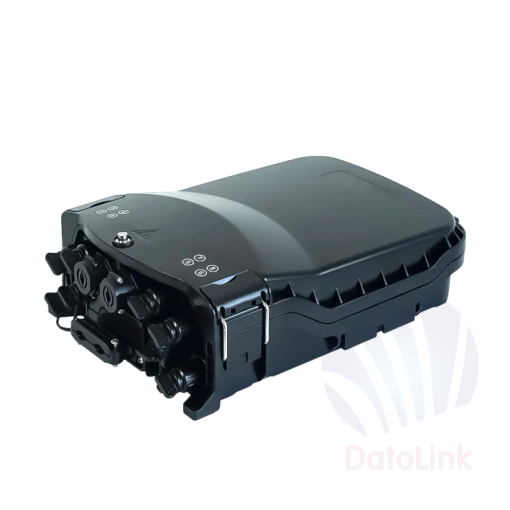

DTLTB-8E
Fiber access termination Box is able to hold up to 16 subscribers and 24 splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing,splitting, distribution, storage and cable connection in one solid protection box.
Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Fiber Access Terminal Box integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid.
protection box.Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.
protection box.Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.
| Parameter | Value |
| Model | DTLTB-24J |
| Outside Dimension (mm) | 340*215*120mm |
| Protection Grade | IP65 |
| Inlet Cable Number | 8pcs |
| Color | Black |
| Core | 8 cores |
| Working Temperature | -40°C~+85°C |
| Outlet Cable Port | 8pcs of SC adapters |
Features:
1.Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
2.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,distribution…etc all in one.
3.Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
4.Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Application
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter
installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter
installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
